Ecocool4u - 20Y

2779 €

Evaporative Air Cooling Principle

The Evaporative Air Coolers are efficient, environment-friendly and energy saving products, which will provide you with the comfort environment and fresh air. The products work based on the principle of evaporative cooling and use high efficiency cooling pads as evaporation media. The fan relies at through the evaporative cooling pads, water driven by the pump circulates from top to bottom of evaporative pads. Heat is supplied by air to water which cause water evaporation and air cooling, water is added automatically as the water level inside the tank falls below the minimum level.

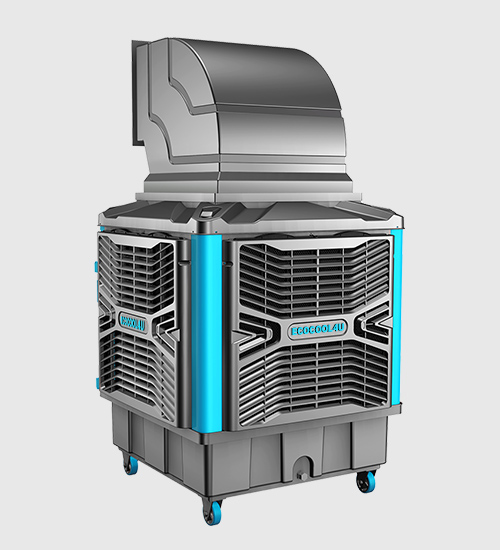

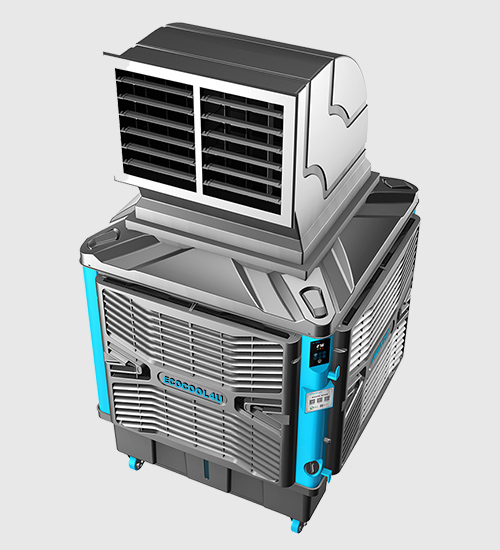

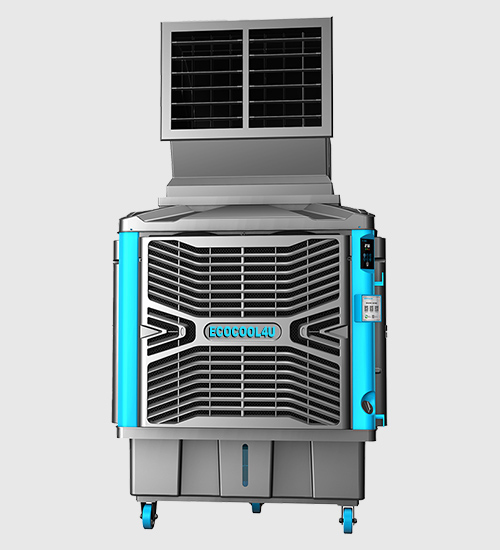

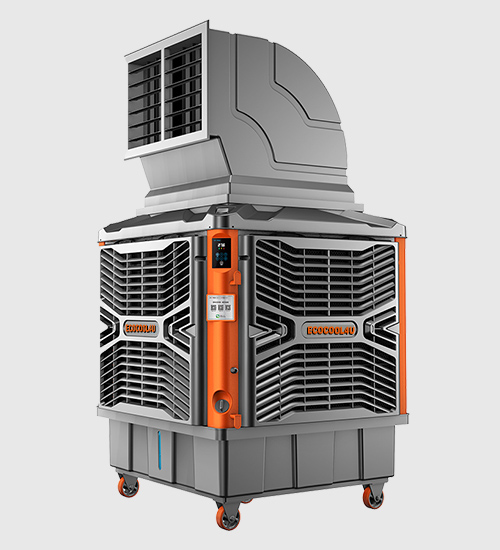

RTF-20YEX is a mobile evaporative air cooler with strong wheels and brakes, easy to move to any space that needs cooling. Plug and play, 30 meters air supply distance, can achieve rapid cooling effect. The 300 liters water tank can meet the needs of ventilation and cooling for more than 8 hours, and it can also be connected to the automatic water supply system for continuous use.

Target Applications:

Workshops

Factories

Supermarket & Mall

Church & School

Outdoor event

rtf-20y

RTF-20YEX Specifications

Model RTF-20YEX
Voltage/Frequency 220~240V / 50~60Hz
Max Air Flow 20,000 m³/h
Working Current 4.7A
Power Consumption 1.1 kW
Physical Size 1120 × 1120 × 1950 mm
Air Outlet Size 700 × 450 mm
Net Weight 84 Kg
Water Tank Capacity 300 L
Water Consumption 65 L/h
Applicable Area 100 ~ 150 m²

remote
